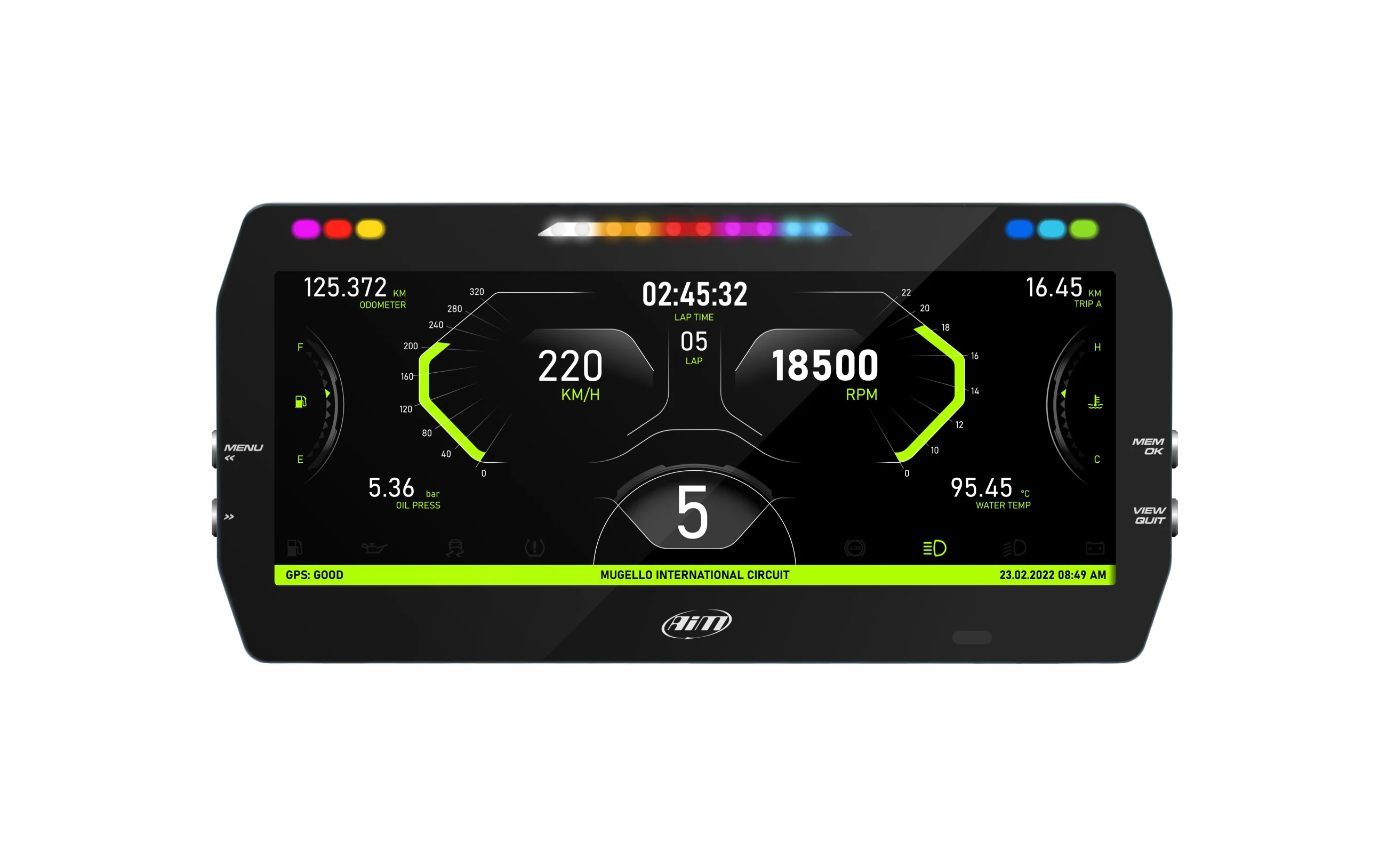

-70%AiM MXT 1.3 Dash—
$3,599.00
$1,079.70The Story
The 10'' colour TFT dash logger for motorsports
| Display |
10” TFT
|
| Resolution |
1280x480 pixels
|
| Contrast |
1,100:1
|
| Brightness |
800cd/m2
|
| Ambient light sensor |
Yes
|
| Alarm LEDs |
6 RGB freely configurable
|
| Shift lights |
10 integrated freely configurable RGB LEDs
|
| CAN connections |
3
|
| ECU connections |
CAN, RS232 or K-Line
|
| ECU compatibility |
+ 2,000 industry leading ECUs
|
| Expansion CAN connection |
GPS09c, Channel Expansion, TC Hub,
LCU1S, SmartyCam 3 Series |
| Inertial platform |
Internal 3 axis ±5G accelerometer + 3 axis gyro max 100 Hz
|
| Analog/digital inputs |
8 fully configurable, max 500 Hz each
|
| Digital inputs |
4 Speed inputs, lap signal, coil RPM input
|
| Digital outputs |
2 (1 A max each)
|
| Second CAN |
Yes
|
| Wi-Fi connection |
Yes
|
| Internal memory |
4 GB
|
| Body |
Anodized Aluminum
|
| Pushbuttons |
Metallic
|
| Connectors |
2 Motorsport connectors + 1 Binder connector
|
| Power consumption |
450 mA
|
| Dimensions |
278x135x43.2 mm
|
| Weight |
1,200 g
|
| Waterproof |
IP67
|
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
The 10'' colour TFT dash logger for motorsports
| Display |
10” TFT
|
| Resolution |
1280x480 pixels
|
| Contrast |
1,100:1
|
| Brightness |
800cd/m2
|
| Ambient light sensor |
Yes
|
| Alarm LEDs |
6 RGB freely configurable
|
| Shift lights |
10 integrated freely configurable RGB LEDs
|
| CAN connections |
3
|
| ECU connections |
CAN, RS232 or K-Line
|
| ECU compatibility |
+ 2,000 industry leading ECUs
|
| Expansion CAN connection |
GPS09c, Channel Expansion, TC Hub,
LCU1S, SmartyCam 3 Series |
| Inertial platform |
Internal 3 axis ±5G accelerometer + 3 axis gyro max 100 Hz
|
| Analog/digital inputs |
8 fully configurable, max 500 Hz each
|
| Digital inputs |
4 Speed inputs, lap signal, coil RPM input
|
| Digital outputs |
2 (1 A max each)
|
| Second CAN |
Yes
|
| Wi-Fi connection |
Yes
|
| Internal memory |
4 GB
|
| Body |
Anodized Aluminum
|
| Pushbuttons |
Metallic
|
| Connectors |
2 Motorsport connectors + 1 Binder connector
|
| Power consumption |
450 mA
|
| Dimensions |
278x135x43.2 mm
|
| Weight |
1,200 g
|
| Waterproof |
IP67
|
