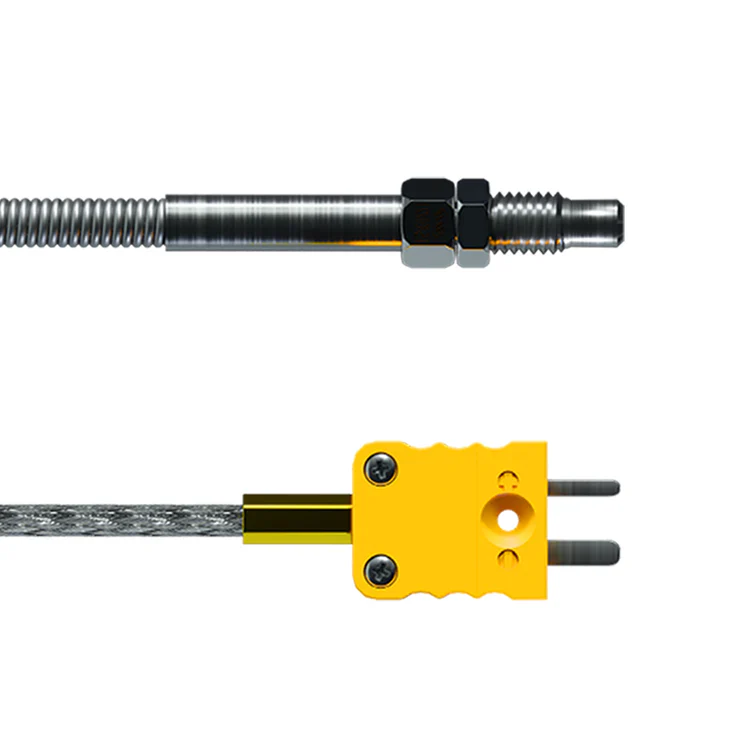

AiM Exhaust Gas Thermocouple Temperature Sensor M5 K Type

The AiM Exhaust Gas Temperature Sensor (EGT) can measure the exhaust gas temperature by being placed in the exhaust header pipe.

Key Features :

- Measure exhaust gas temperature

- Thermocouple male fitting

- Wide temperature range

The AiM K Type thermocouple temperature sensor is fitted with a two pins male thermocouple connection.
It can measure the exhaust gas temperature by being placed in the exhaust header pipe around 150mm from the exhaust pipe.

Temperature range of 0-1000°C

Sensor cable length 25cm

Professional quality sensors for accurate readings

Designed for the harsh Motorsport environment

2 Pin K-Type thermocouple male connector

Connections

To use the sensors with EVO4 and EVO4S data loggers, you will need a TC yellow 712 4 pin patch lead (metal binder plug) or to use them with an AIM TC Hub or directly to a MyChron4 or MyChron5 kart lap timer/dash logger, you will need a TC yellow 712 3 pin patch lead (metal binder plug).

MXS, MXG, MXP, MXL2 and EVO5 will require a TC - TC yellow patch lead. To connect the thermocouples to these Aim dash/loggers, you need to use the dedicated harness supplied with your device.
